Bright Steel Bars for General Fabrication & Structural Applications
General fabrication and structural components require materials that machine predictably, form reliably and deliver consistent mechanical performance in assemblies. Bright steel bars are frequently used for machined brackets, precision-fit dowels, fabricated shafts, jigs, tooling fixtures and small structural elements where dimensional control, surface quality and reliable heat-treatment response reduce fitment rework and improve assembly accuracy.

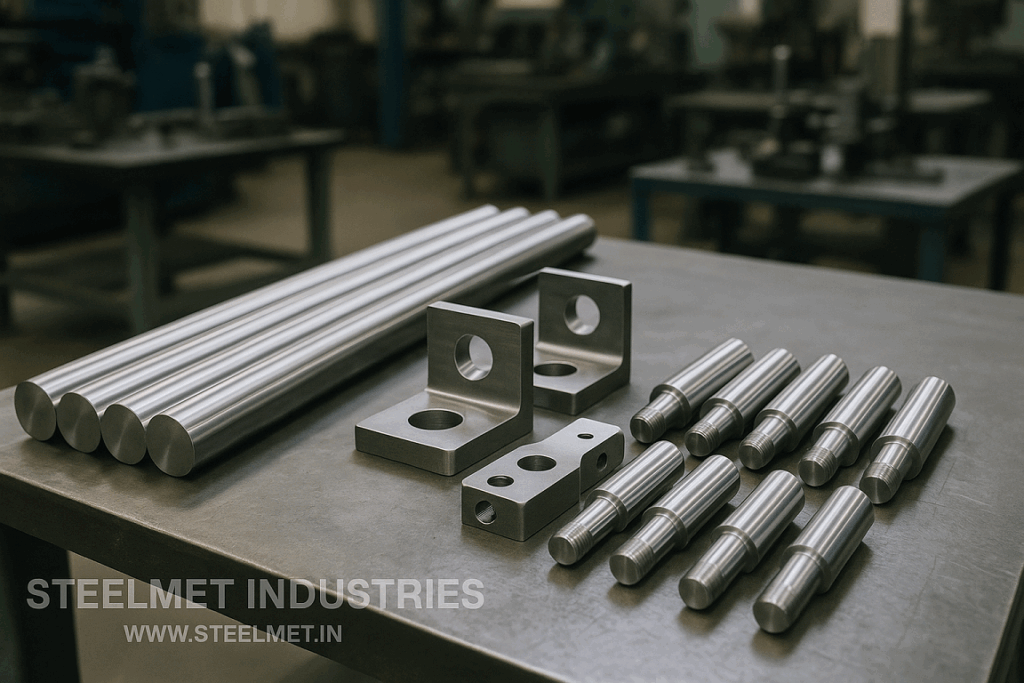

Bright bars staged for fabrication into brackets, dowels, shafts and precision-fit structural components.
Primary Applications
- Machined brackets, gussets and fabricated connectors
- Precision dowels, locating pins and assembly-fit components
- Small structural shafts, tie-rods and stepped shafts
- Tooling fixtures, mandrels and jigs used in fabrication lines
- Wear sleeves, bushings and small contact elements
- Architectural metal fittings requiring fine surface finish
Component Groups & Child Pages

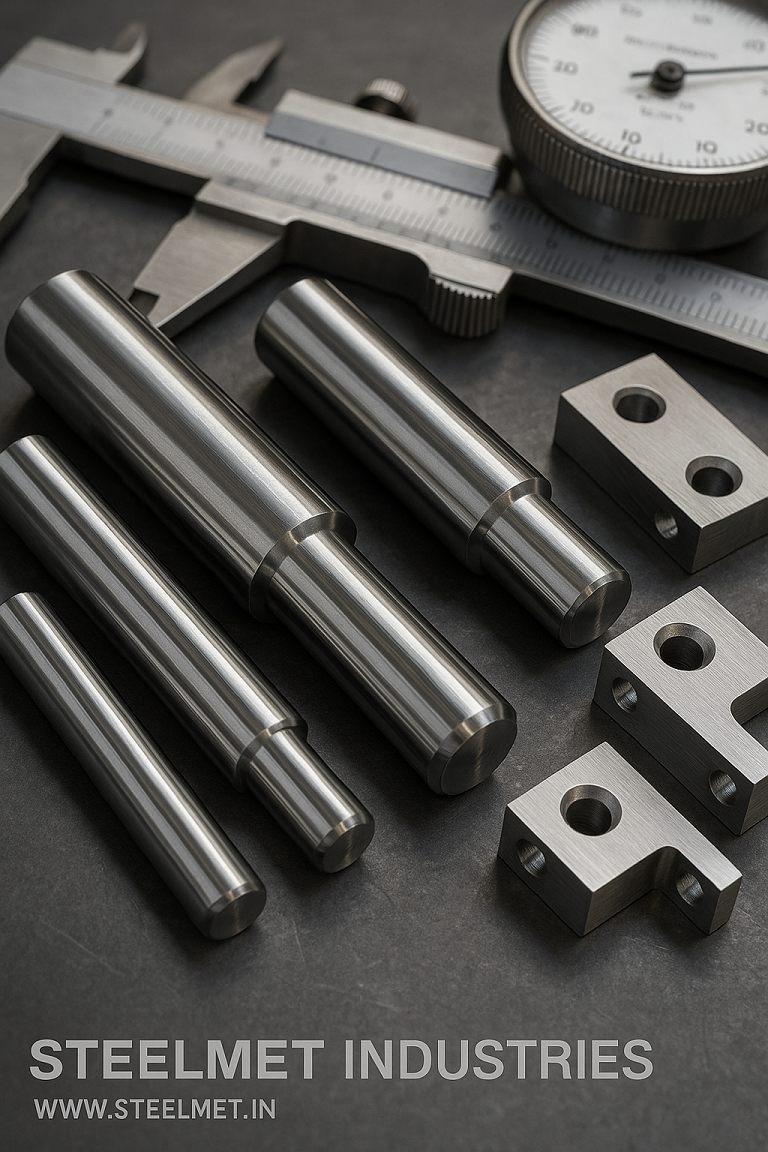

Fabricated Brackets, Connectors & Gussets
Fabricated brackets and gussets machined from bright bars reduce welding distortion on critical faces and keep bolt hole alignment predictable during assembly.
Precision Dowels & Locating Pins
Dowels and locating pins require tight OD tolerances and high surface finish to ensure repeatable assembly alignment and low wear in mating bushings.
Jigs, Fixtures & Tooling Mandrels
Tooling cores and fixtures benefit from bright-bar starting material for stability, reduced grinding and consistent dimensional control across lots.
Why bright bars help fabrication & structural quality
- Consistent OD and straightness minimise assembly rework and improve hole alignment after welding.
- Better surface finish reduces post-weld machining and improves fatigue life at fastener holes.
- Predictable microstructure supports uniform heat treatment and easier stress-relief cycles.
- Lower machining allowance reduces cycle time for fabricated sub-assemblies.
Real-world use case
A fabrication house using C45 bright bars for precision dowels and mounting pins reduced post-assembly grinding and alignment corrections. The improved straightness of bright bars decreased rework on bolted connections and improved overall assembly throughput.
Quick decision pointers
- For dowels and pins: use C45/EN8 for moderate duty; EN19 for high-strength locating elements.
- For fabricated brackets: EN8D offers good machinability; specify stress-relief after welding to maintain tolerances.
- For jigs and fixtures: EN1A/12L14 provides excellent surface finish for precision tooling; EN24 for high-impact tooling cores.
- For wear sleeves and bush-contact parts: EN31/52100 or nitriding-compatible grades improve service life.
Failure-prevention and quality notes
- Include post-weld stress-relief procedures when bright-bar derived parts are welded into assemblies to prevent distortion.
- Specify straightness per length for long fabricated shafts and stepped components.
- Define surface finish and bore tolerances for dowels to ensure press-fit or slip-fit performance as required.
- For plated or coated parts, define pre-treatment Ra values to ensure coating adhesion and longevity.
Standards & Equivalents (Table 1)
| IS | BS970 | AISI / SAE | DIN / EN | JIS | GOST | GB |
|---|---|---|---|---|---|---|
| C45 | EN8 | 1045 | C45E / 1.1191 | S45C | 45 | 45# |
| EN8D / C40 | 080M40 | 1040 | C40 / 1.0511 | S40C | 40 | 40# |
| EN1A / EN1AL | 230M07 | 12L14 | 11SMnPb30 | SUM22 | 10ЮТ | Y12Pb |
| EN19 | 708M40 | 4140 | 42CrMo4 / 1.7225 | SCM440 | 40Х | 42CrMo |
| EN31 | 070M55 | 52100 | 1.3505 | SUJ2 | ШХ15 | GCr15 |
Grade Selection, Performance & Heat Treatment (Table 2)
| Grade | Typical Fabrication / Structural Use | Performance Indicators | Typical Heat Treatment Route |
|---|---|---|---|
| C45 / EN8 (1045) | Dowels, machined brackets, small shafts and moderate-load structural fittings. | Machinability: Medium | Hardenability: Low/Medium | Wear Resistance: Moderate | Fatigue Strength: Moderate | Normalize or Q&T depending on required strength; induction hardening on wear zones. |
| EN8D / C40 | General-purpose fabricated parts, threaded rods and cost-sensitive structural elements. | Machinability: Medium/High | Hardenability: Low | Wear Resistance: Moderate | Fatigue Strength: Low/Moderate | As-drawn or normalized; surface treatment optional. |
| EN1A / EN1AL (12L14) | Tooling mandrels, fixtures and turned components requiring high surface finish and rapid machining. | Machinability: High | Hardenability: Low | Wear Resistance: Low | Fatigue Strength: Low/Moderate | Used in machined/finished condition; stress relief if necessary. |
| EN19 (4140) | High-strength locating pins, heavy dowels and stepped shafts with higher load requirements. | Machinability: Medium | Hardenability: Good | Wear Resistance: High | Fatigue Strength: High | Q&T; tempering to balance toughness and strength. |
| EN31 / 52100 | Wear sleeves, bush-contact elements and high-contact structural parts. | Machinability: Low | Hardenability: Excellent | Wear Resistance: Very High | Fatigue Strength: Very High | Through-hardened and tempered; bearing-grade cycles where needed. |
Inspection & manufacturing checklist
- Define post-weld stress-relief and straightness tolerances for welded assemblies containing bright-bar parts.
- Specify press-fit / slip-fit tolerances for dowels and locating pins to ensure repeatable assembly alignment.
- Require test certificates for Q&T grades supplied for load-bearing fixtures.
- Confirm surface finish and pre-treatment requirements for plated or painted fabrication parts.
Frequently Asked Questions
Are bright bars necessary for fabricated brackets?
They are not always necessary, but bright bars reduce finishing work and improve dimensional predictability where bolt-hole alignment and tolerances matter.
Which grade is best for tooling mandrels?
EN1A/12L14 is often used for mandrels and fixtures because of its superior surface finish and high machinability; EN24 is selected for high-impact tooling cores.
How should I specify dowel tolerances?
Provide OD tolerance class, surface roughness, and fit type (press fit / slip fit) on the drawing; include material and heat-treatment notes when necessary.
