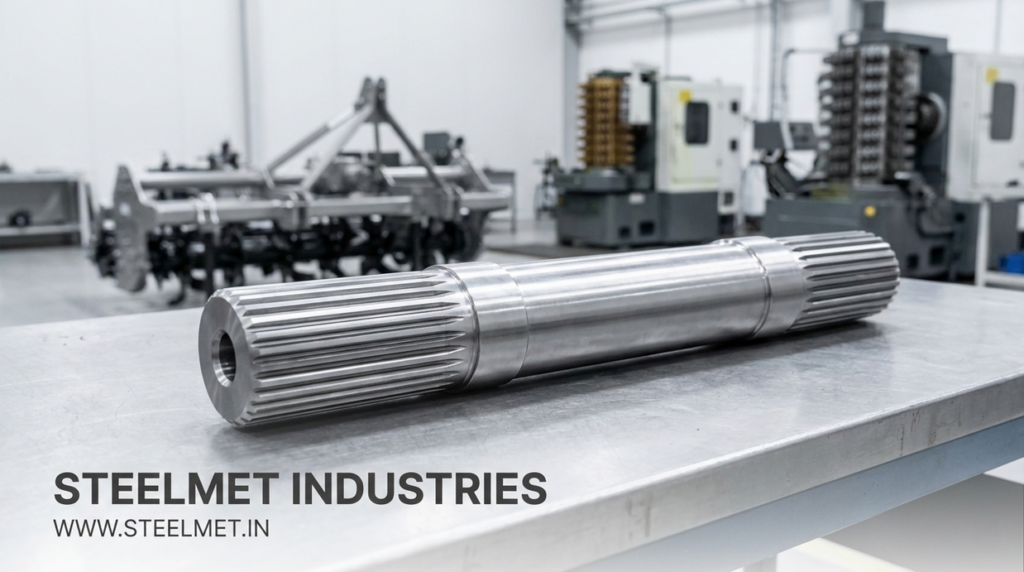

PTO Shaft – Steel Bright Bar Applications
A PTO (Power Take-Off) shaft is a torque-transmitting component used to transfer mechanical power
from tractors or prime movers to agricultural implements and machinery.
PTO shafts operate under high torsional loads, shock loading, misalignment and continuous cyclic stress.
For these reasons, PTO shafts are commonly manufactured from steel bright bars
that offer controlled mechanical properties, straightness and reliable machinability.
← Back to Farm Machinery & Agricultural Equipment
|
← All Bright Bar Applications
Where PTO Shafts Are Used
- Tractors and agricultural prime movers
- Rotavators, tillers and cultivators
- Harvesters and balers
- Seed drills and fertilizer spreaders
- Industrial and stationary PTO-driven equipment
Why Steel Bright Bars Are Used for PTO Shafts
- High torsional strength for continuous torque transmission
- Excellent straightness to reduce vibration and imbalance
- Uniform mechanical properties for fatigue resistance
- Good machinability for splines, keyways and profiles
- Reliable heat treatment response for strength enhancement

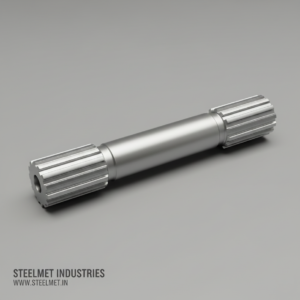

PTO Shaft – Typical Geometry & Machined Features
PTO shafts typically incorporate splines, keyways, cross-joint interfaces and profile transitions.
Dimensional accuracy and surface integrity are critical for reliable power transmission and service life.
Common Steel Grades Used
| Application Type | Typical Steel Grades |
|---|---|
| Standard Agricultural PTO Shafts | EN8, EN8D, C45 |
| Medium to Heavy Load Applications | EN19 |
| High Torque & Shock Load Conditions | 42CrMo4 |
Typical Processing & Operations
- Cold drawn or peeled & polished bright bars
- CNC turning and machining
- Spline cutting or spline rolling
- Induction hardening (select applications)
- Surface protection as per operating environment
Bright Bar Sections & Supply Form
- Round bright bars (most commonly used)
- Custom diameters as per PTO design
- Straight lengths suitable for spline machining
Manufacturing & Quality Considerations
- Strict straightness control to avoid vibration
- Controlled chemistry for consistent heat treatment
- Dimensional accuracy for spline engagement
- Traceability for agricultural OEM supply
Related Components
- Rotavator Shafts
- Splined Shafts
- Coupling Shafts
Why Steelmet Industries?
- Bright bars with consistent mechanical properties
- Supply of EN8, EN19 and alloy steel grades
- VD route steels available for fatigue-critical PTO shafts
- Inspection and testing support via NABL-certified laboratories
FAQs
Why is torsional strength important in PTO shafts?
PTO shafts continuously transmit torque under varying loads. Adequate torsional strength prevents twisting
and premature failure.
Which steel grade is commonly used for agricultural PTO shafts?
EN8 and EN8D are commonly used for standard applications, while EN19 and 42CrMo4 are selected for higher torque demands.
Are PTO shafts subjected to shock loads?
Yes. Agricultural implements often generate shock and fluctuating loads, requiring fatigue-resistant materials.
