Hydraulic Cylinder Shaft – Steel Bright Bar Applications
A hydraulic cylinder shaft is a motion-transmitting component that converts hydraulic
pressure into controlled linear mechanical movement. In service, the shaft is subjected
to high axial loads, alternating compressive and tensile stresses, side loads due to
misalignment, and continuous cyclic loading. Because failure directly impacts machine
safety and uptime, material selection for hydraulic cylinder shafts is engineering-critical.
Steel bright bars are widely used as the base material for manufacturing
hydraulic cylinder shafts due to their controlled straightness, superior surface finish,
uniform metallurgy, and predictable machining behaviour. These characteristics are
essential for seal life, buckling resistance, and long-term fatigue performance.
← Back to Hydraulics & Pneumatics
|
← All Bright Bar Applications
Where Hydraulic Cylinder Shafts Are Used
- Construction and earthmoving equipment (excavators, loaders, cranes)
- Agricultural machinery (tractors, harvesters, implements)
- Industrial presses and forming equipment
- Material handling systems and forklifts
- Mobile and stationary hydraulic power units
Why Steel Bright Bars Are Used for Hydraulic Cylinder Shafts
- High straightness to minimise seal wear and side loading
- Excellent surface finish suitable for grinding and chrome plating
- Consistent tensile and yield strength along full bar length
- Dimensional accuracy for tight piston and gland tolerances
- Predictable response to induction hardening and surface treatments
Hydraulic Cylinder Shaft – Geometry & Surface Requirements

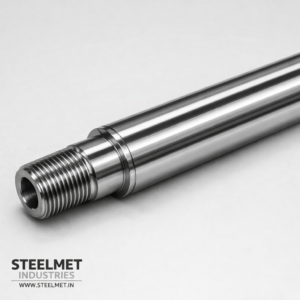

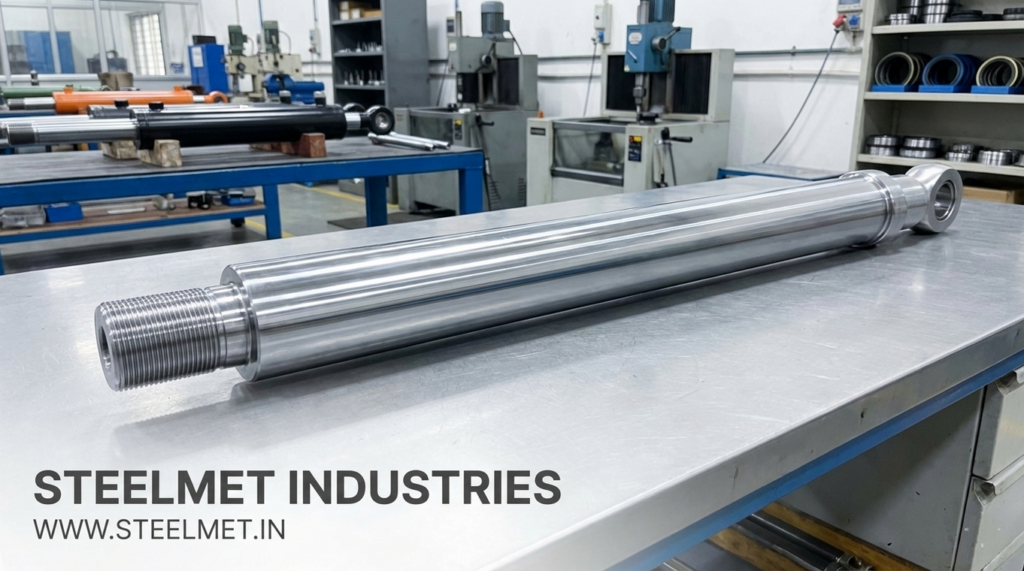

Typical hydraulic cylinder shaft machined from steel bright bar with polished working surface
Hydraulic cylinder shafts typically feature precision-ground working surfaces, threaded or
clevis ends, and accurately machined bearing interfaces. Surface waviness, roundness,
and straightness directly affect seal integrity, friction losses, and cylinder life.
Load Behaviour & Engineering Considerations
| Load Condition | Engineering Risk | Material Requirement |
|---|---|---|
| High axial compression | Buckling | High straightness, adequate core strength |
| Cyclic pressure loading | Fatigue cracking | Clean steel, uniform microstructure |
| Seal contact | Premature seal failure | Low surface roughness, good grindability |
Common Steel Grades Used
| Application Duty | Typical Grade | Reason for Selection |
|---|---|---|
| Standard hydraulic cylinders | EN8D / C45 | Good strength, machinability, grindability |
| Medium to high pressure systems | EN19 | Higher tensile and fatigue strength |
| Heavy-duty, fatigue-critical cylinders | 42CrMo4 | Superior toughness and fatigue resistance |
Typical Manufacturing & Finishing Operations
- Cold drawn or peeled & polished bright bar supply
- CNC turning for end features and threads
- Precision grinding to achieve seal-grade surface finish
- Induction hardening (select zones, where required)
- Hard chrome plating or alternative surface coatings
Manufacturing & Supply Realities
Hydraulic cylinder shaft manufacturers typically require straight lengths with minimal
run-out, consistent diameter over long lengths, and sufficient machining allowance for
grinding and plating. Batch consistency, chemistry control, and traceability are critical,
especially for OEM and export-oriented hydraulic equipment.
Where Bright Bars May NOT Be Suitable
Bright steel bars may not be ideal where extremely large diameters, very long unsupported
stroke lengths, or fully hollow piston rods are required. In such cases, forged, honed
tubes or specialised alloy solutions may be more appropriate.
Buyer Decision Checklist
- Required straightness vs cylinder stroke length
- Surface finish requirement before grinding
- Compatibility with chrome plating or coatings
- Fatigue life expectations under cyclic loading
- Traceability and inspection requirements
Related Components
- Hydraulic Piston Rods
- Guide Rods
- Shock Absorber Rods
FAQs
Why is straightness critical for hydraulic cylinder shafts?
Poor straightness increases side loading on seals, leading to leakage and premature wear.
Are bright bars suitable for chrome-plated shafts?
Yes. Bright bars provide an excellent base surface for grinding and chrome plating.
Which grade is preferred for high-pressure cylinders?
EN19 and 42CrMo4 are commonly selected for higher pressure and fatigue-critical applications.
