Hydraulic Piston Rod – Application of Steel Bright Bars
A hydraulic piston rod is a primary load-bearing and motion-transmitting component
used inside hydraulic cylinders. It converts fluid pressure into controlled linear movement
and operates under continuous compressive, tensile and cyclic loading conditions.
For this reason, hydraulic piston rods are manufactured using
steel bright bars that offer tight dimensional tolerances,
excellent straightness and controlled surface finish. These properties are essential
to ensure smooth sliding motion, long seal life and reliable system performance.
← Back to Hydraulics & Pneumatics
|
← All Bright Bar Applications
Where Hydraulic Piston Rods Are Used
- Construction & earthmoving equipment – excavators, loaders, cranes
- Agricultural machinery – tractors, harvesters, hydraulic implements
- Industrial presses – forging, stamping and forming machines
- Material handling systems – forklifts and lifting platforms
- Mobile & stationary hydraulic systems across industries
Why Steel Bright Bars Are Used for Piston Rods
-
High straightness – ensures perfectly aligned linear movement and
prevents uneven seal wear. -
Superior surface finish – critical for sealing performance and
leakage prevention. - Dimensional accuracy – guarantees proper fitment inside cylinder bores.
- High tensile strength – withstands internal hydraulic pressure.
- Consistent metallurgy – improves fatigue life and reliability.

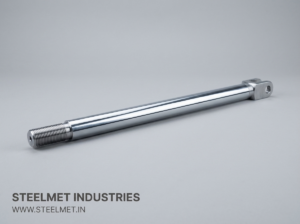

Hydraulic Piston Rod – Typical Geometry & Surface Condition
Piston rods are typically cylindrical with precision ground bearing surfaces.
The straightness and surface integrity directly influence seal life,
friction levels and overall cylinder efficiency.
Common Steel Grades Used
| Application Condition | Typical Steel Grades |
|---|---|
| Standard duty hydraulic cylinders | EN8D, C45 / EN8 |
| Medium to high pressure systems | EN19 |
| Heavy-duty & fatigue-critical applications | 42CrMo4 |
Typical Processing & Finishing
- Cold drawn or peeled & polished bright bars
- Precision grinding for sealing surfaces
- Induction hardening (application dependent)
- Hard chrome plating or alternative coatings (as required)
Bright Bar Sections & Supply Form
- Round bright bars (most common)
- Custom diameters based on cylinder design
- Straight lengths suitable for CNC machining
Manufacturing & Quality Considerations
- Straightness control to prevent seal damage
- Surface integrity for plating adhesion
- Uniform chemistry for heat treatment consistency
- Full traceability for critical hydraulic systems
Related Components
- Hydraulic Cylinder Shafts
- Guide Rods
- Heavy-Duty Hydraulic Rods
Why Steelmet Industries?
- Consistent straightness for hydraulic applications
- Supply of EN8D, EN19 and alloy steel bright bars
- VD route steels for fatigue-critical rods
- NABL-certified inspection support
FAQs
Why is surface finish critical for hydraulic piston rods?
Surface finish directly affects seal life, leakage control and smooth cylinder movement.
Which steel grade is commonly used for piston rods?
EN8D is widely used for standard applications, while EN19 and 42CrMo4 are selected
for higher loads and pressures.
Can bright bars be supplied for chrome plated piston rods?
Yes. Bright bars with controlled surface finish and straightness are suitable
for chrome plating and similar coatings.
