Use of Steel Bright Bars in Valve Spool Shaft Manufacturing

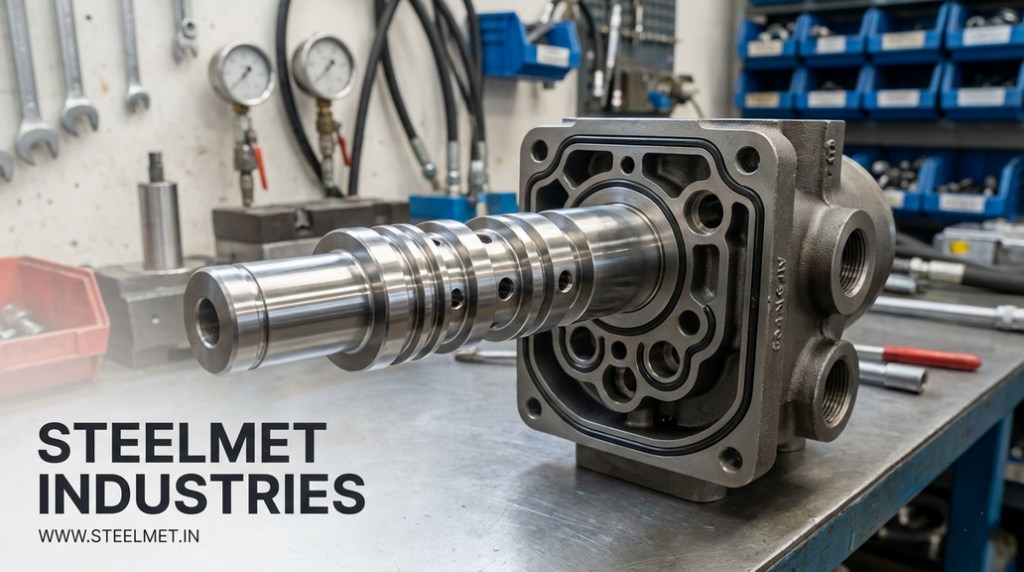

A valve spool shaft is a precision component used inside
hydraulic control valves to regulate fluid flow and direction.
It moves axially inside the valve body, opening and closing
ports to control pressure and flow paths.
To manufacture valve spool shafts, steel bright bars are
used as raw material because of their excellent dimensional
accuracy, surface finish and consistent metallurgy. These
properties are critical to achieve leak-free operation and
precise flow control.
← Transmission & Hydraulics Applications
|
← All Bright Bar Applications
Where Valve Spool Shafts Are Used
- Directional control valves
- Pressure relief valves
- Flow control valves
- Hydraulic power packs
- Mobile hydraulic systems
Why Bright Bars Are Used to Manufacture Valve Spool Shafts
- High dimensional accuracy for close fits
- Superior surface finish for sealing
- Excellent straightness for smooth axial movement
- Uniform microstructure
- Good response to surface hardening

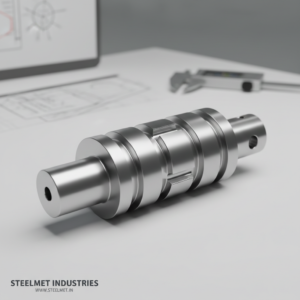

Valve Spool Shaft – Geometry & Functional Surfaces
Valve spool shafts have multiple precision lands and
grooves. These features direct hydraulic oil to specific
ports and ensure controlled flow and pressure regulation.
Manufacturing Process Using Bright Bars
- Cutting bright bar to required length
- CNC turning for diameter control
- Machining lands and grooves
- Superfinishing or lapping
- Induction hardening (if required)
- Final inspection for concentricity
Design Considerations
- Surface roughness for leak prevention
- Roundness and cylindricity
- Clearance between spool and bore
- Resistance to scoring
Surface Treatments Used
- Induction hardening
- Nitriding
- Hard chrome plating
- Polishing and lapping
Steel Grades Used for Valve Spool Shafts
| Application | Steel Grade | Reason |
|---|---|---|
| Standard hydraulic systems | EN8, C45 | Good machinability |
| High pressure systems | EN19 | Better fatigue resistance |
| Critical control valves | 42CrMo4 | Superior toughness |
Common Valve Spool Shaft Failures
- Scoring from contaminated oil
- Leakage due to poor surface finish
- Bending from improper assembly
- Wear at sealing lands
Correct bright bar selection and proper heat treatment
significantly reduce these failures.
Related Hydraulic Components
- Hydraulic Piston Rods
- Guide Rods
- Clevis Pins
Why Steelmet Industries?
- Precision bright bars for hydraulic components
- Strict tolerance control
- VD route steels available
- NABL-certified testing
- Complete traceability
FAQs
What material is used for valve spool shafts?
EN8 and EN19 steels are commonly used.
Why bright bars are preferred?
They offer tight tolerances and smooth finish.
Are spool shafts hardened?
Yes, surface hardening improves wear resistance.
Can VD route steel be used?
Yes, for critical hydraulic applications.
